English

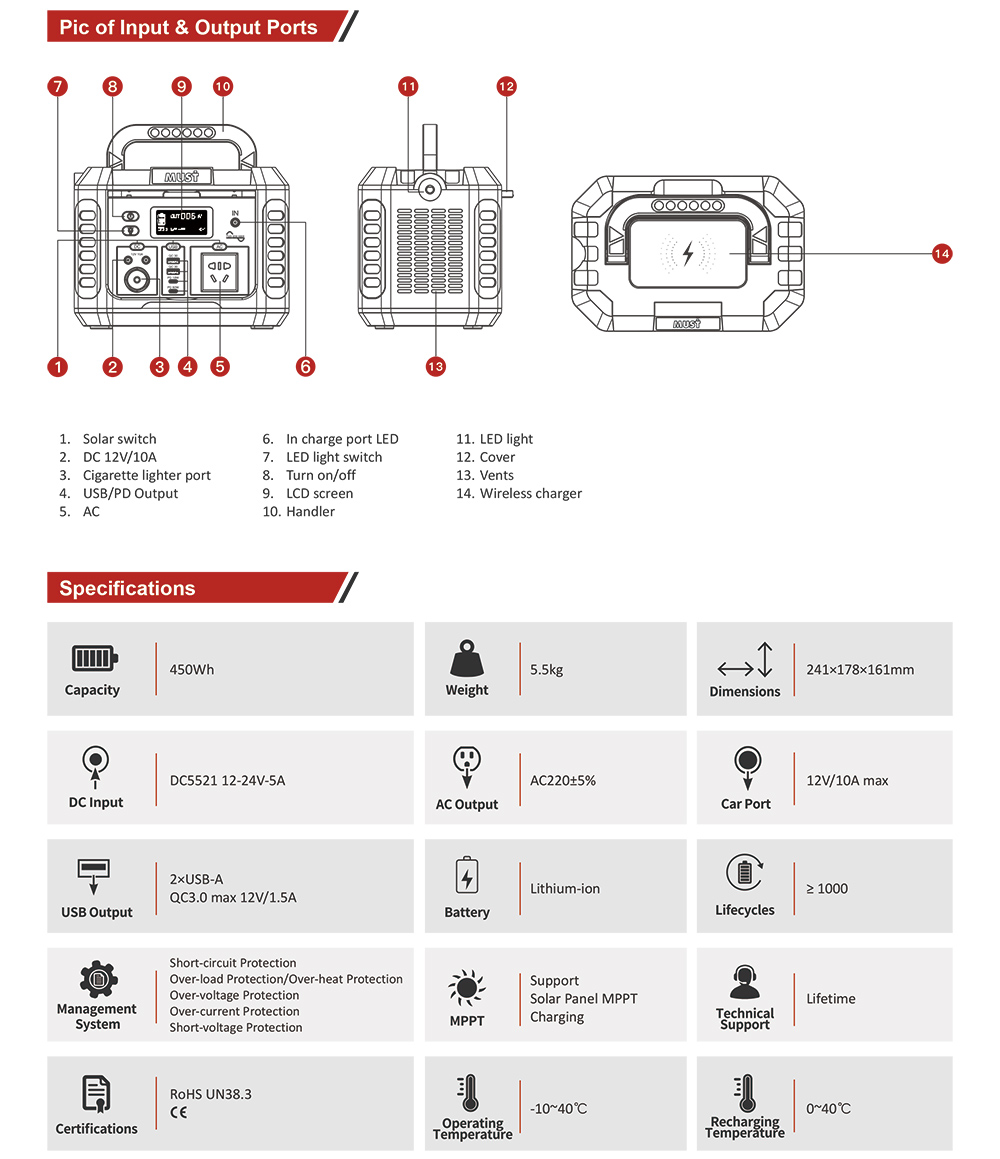

| Type | Item | Parameter |
|---|---|---|
| INPUT | Direct current input | DC 5521 12-24V-5A |
| Direct current input | Type-C PD60W | |
| AC OUT 110/220V | AC output voltage | AC plug AC 220V±5% |
| AC output watt | 500W | |
| Over-load protection | 550W | |
| AC output wave | Pure sine wave | |
| AC output peak | 1000W peak hold time | |
| Frequency | 50Hz | |
| USB output ports | USB1 output | QC3.0 MAX 12V/1.5A |
| USB2 output | QC3.0 MAX 12V/1.5A | |
| TC output port | Type-C1 output | PD18W |
| TC output port | Type-C2 output | PD60W |
| Wireless output | 15W | |
| DC output port | DC1/DC2 Cigarette lighter | 12V/10A MAX |
| Charging parameter | DC 12-24V/5A | |
| Charging time | 5-6H | form 10% to 100% (auto cut-off) |
| Charging voltage | 25.2V±0.1V | the voltage until full-charged |
| Protect function | short circuit/over-load/over-heat/over-voltage/over-current/short-voltage | |
| LED screen | Show battery charging status | Percentage of battery charging status |
| DC/AC/PD working condition | Showing watt | |
| Battery pack | Type | Li-on battery |
| Capacity | 450Wh | |
| Recycle | Over 1000 times | |
| Over-heat protection | AC over-heat protection | ≥85℃ |
| Battery over-heat protection | ≥65℃ | |
| Boot static | 8W |
