Features higher capacities for greater compatibility with more power-hungry devices, and the latest in USB-C Power Delivery capable ofcharging larger USB devices like laptops.
Includes pre-installed solar charging optimization module that functions as a maximum power point tracker (MPPT), resulting in up to 40%faster charge times.
Built in Multi safety protection that include short circuit, overload and over-temperture and error code reporting.

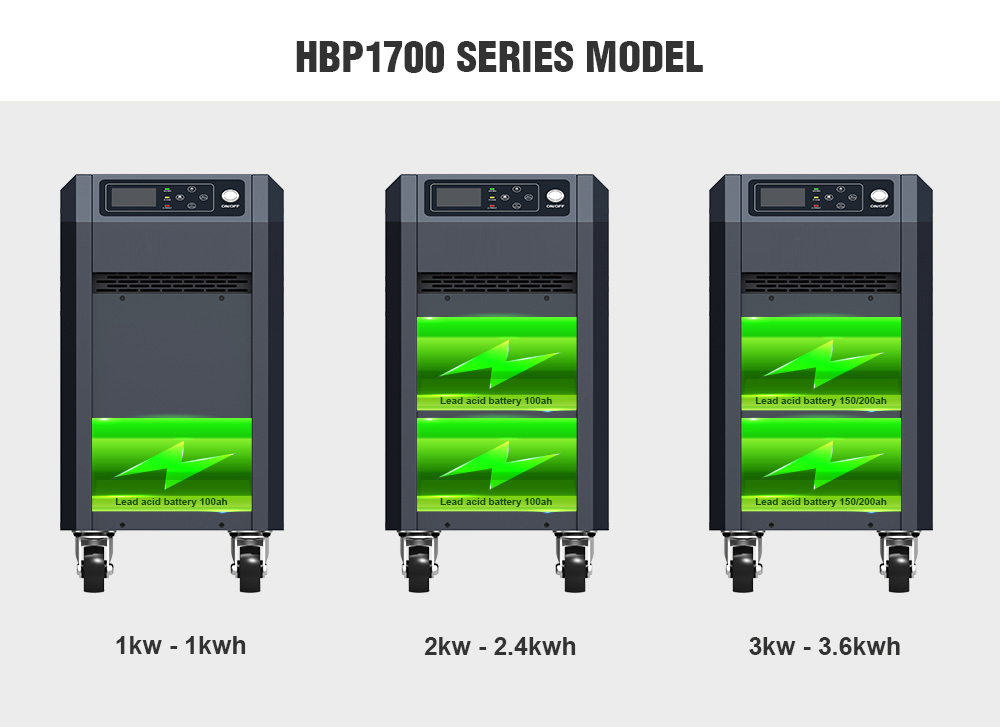

| MODEL | HBP17-1012 | HBP17-2024 | HBP17-3024 |
|---|---|---|---|
| Inverter | |||
| Rated power | 1000W | 2000W | 3000W |
| Output voltage waveform | Pure sine wave | ||
| Output voltage regulation | 230Vac±5% | ||
| Output frequency | 50Hz or 60Hz (±0.2Hz) | ||
| Peak efficiency | 93% | ||
| Nominal DC input voltage | 12Vdc | 24Vdc | 24Vdc |
| Standby Consumption | <25W | ||
| PV Input | |||
| Max solar power input | 625W | 1500W | 2000W |
| PV max charging current | 60A | 80A | |
| Combined charging current | 70A | 80A | |
| Max efficiency | 98.0% max | ||
| PV array open circuit voltage | 75Vdc | 145Vdc | 450Vdc |
| PV Array MPPT Voltage Range | 15~75Vdc | 30~120Vdc | 150~430Vdc |
| AC Input | |||
| AC input voltage | 230Vac ±5% | ||
| Acceptable input voltage range | 170-280VAC | ||
| Nominal input frequency | 50Hz / 60Hz (Auto detection) | ||
| Transfer time | 10ms typical (UPS, VDE); 20ms typical (APL) | ||
| AC Charge | |||
| Charging current @ Nominal input voltage | 10A-20A | 20A-30A | 1-60A |
| Output | |||

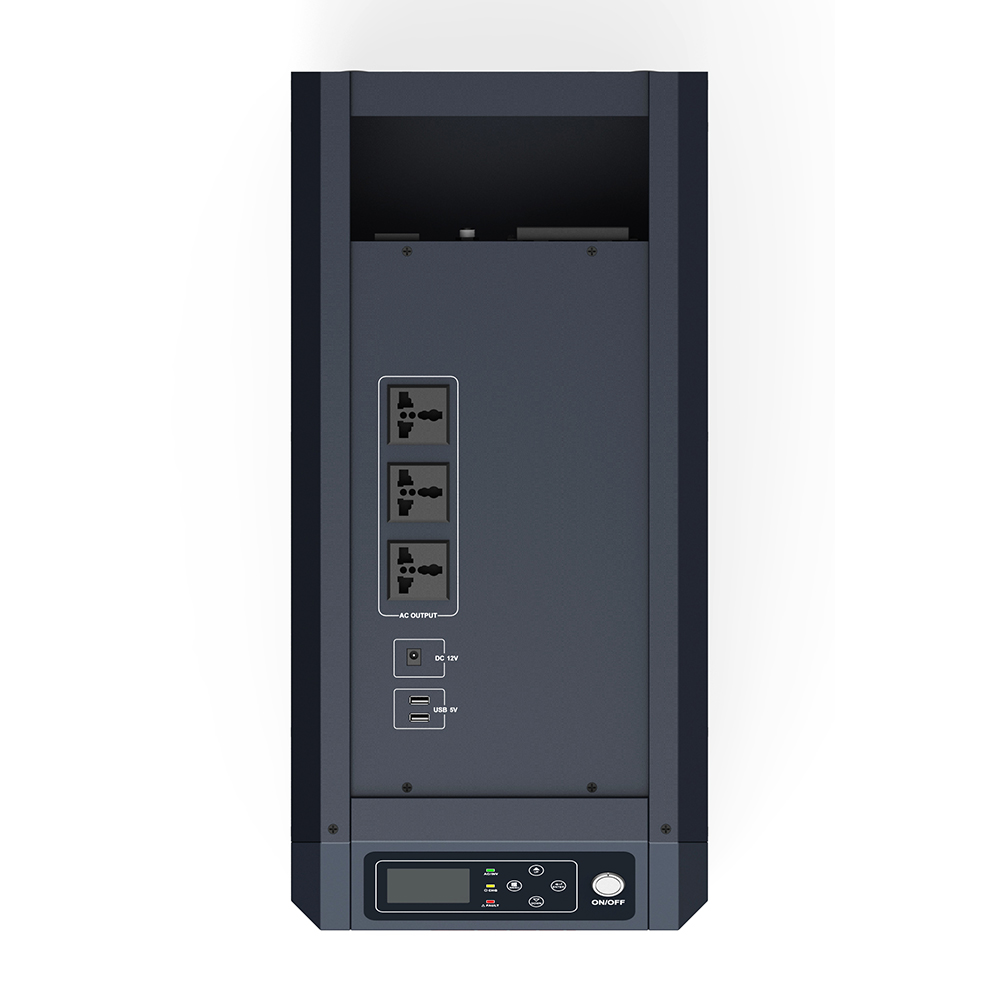

| AC output | 230Vac (Socket *4pcs) | ||
| USB (5V 2.4A) | DC output*2pcs | ||
| USB (12V 1A) | DC output*1pcs | ||
| VRLA Battery | |||
| Nominal voltage | 12V | 24V | |
| Battery capacity | 100Ah | 100Ah | 150Ah |
| Maximum continuous charging & discharge current | 100A | 100A | 150A |
| Operation ambient temperature | |||
| Charge | -20~50℃ | ||
| Discharge | -20~50℃ | ||
| Storage | -20~50℃ | ||
